WEIDMULLER TERMINAL BLOCKS/PRODUCT MODEL: SNAP IN- S SERIES, PUSH IN – A SERIES, SCREW – W SERIES
Ultech Engineering Sdn BhdType: Sale
PRODUCT NAME: WEIDMULLER TERMINAL BLOCKS
PRODUCT MODEL: SNAP IN- S SERIES, PUSH IN – A SERIES, SCREW – W SERIES
PRODUCT MODEL: SNAP IN- S SERIES, PUSH IN – A SERIES, SCREW – W SERIES
Description
PRODUCT NAME: TERMINAL BLOCKS (WEIDMULLER)
PRODUCT MODEL: SNAP IN – S SERIES, PUSH IN – A SERIES, SCREW- W SERIES

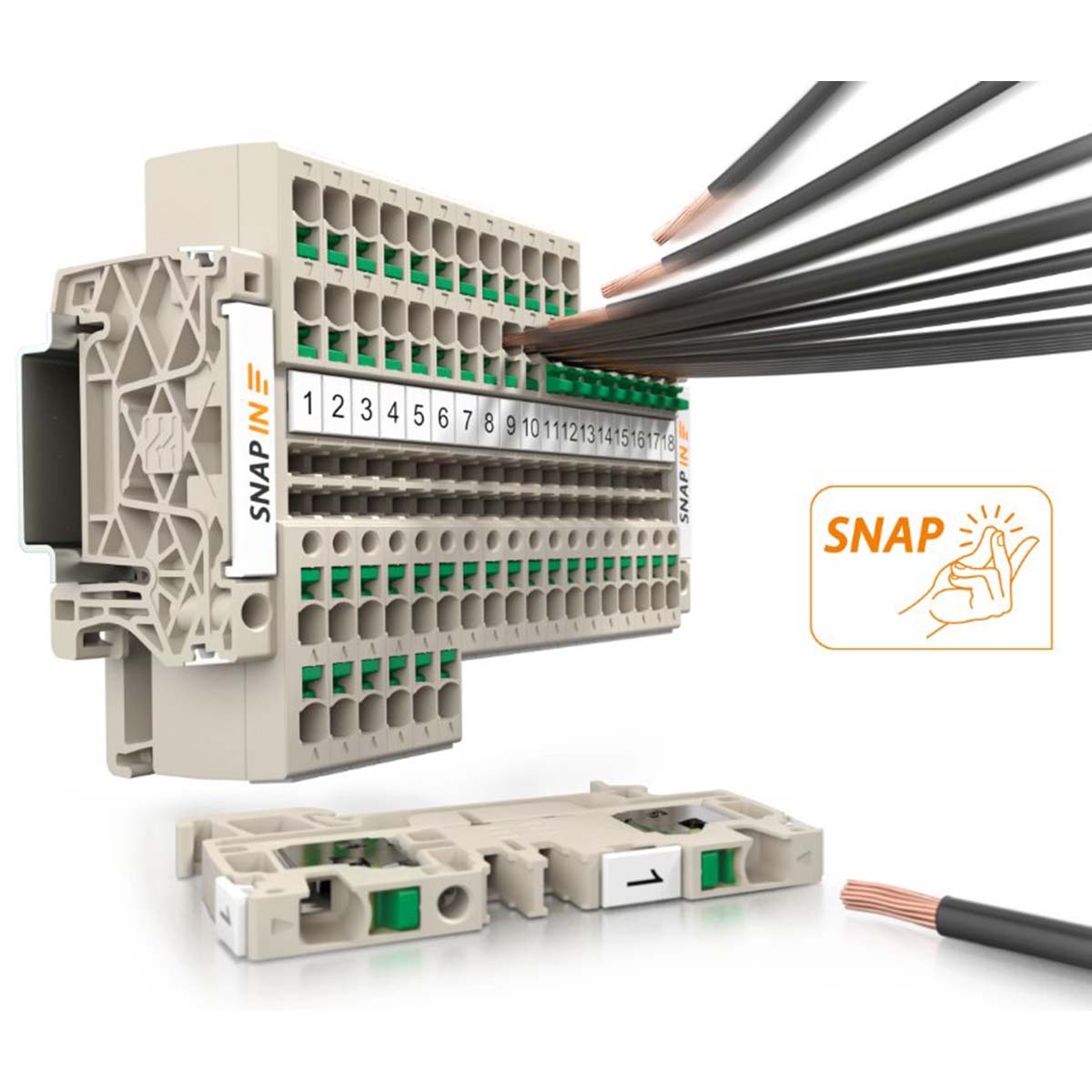

A) SNAP IN – S SERIES
OVERVIEW
THE S-SERIES TERMINAL BLOCKS FEATURE INNOVATIVE SNAP IN TECHNOLOGY, OFFERING A RELIABLE AND EFFICIENT SOLUTION FOR ELECTRICAL CONNECTIONS. THESE TERMINAL BLOCKS ARE DESIGNED FOR QUICK AND SECURE WIRING, MAKING THEM IDEAL FOR VARIOUS INDUSTRIAL APPLICATIONS.
-PRODUCT VARIANTS
• S2C 2.5: SUITABLE FOR 2.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN DARK BEIGE AND ORANGE COLORS.
• S3C 2.5: ALSO DESIGNED FOR 2.5 MM² CONDUCTORS, THIS VARIANT PROVIDES ENHANCED FEATURES AND IS AVAILABLE IN DARK BEIGE.
-TECHNICAL DATA
• WIDTH/HEIGHT/DEPTH: 5.1/35.9/38 MM
• MAX. CURRENT/MAX. CONDUCTOR CROSS-SECTION: 24 A / 2.5 MM²
• MAX. CLAMPING RANGE: 0.5-2.5 MM²
• RATED VOLTAGE: UP TO 800 V
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
-ACCESSORIES
• CROSS CONNECTION PLUGGABLE: AVAILABLE IN 2-POLE AND 10-POLE VARIANTS FOR EFFICIENT CONNECTIVITY.
• END PLATES AND BRACKETS: ENSURE SECURE MOUNTING AND PROTECTION OF TERMINAL BLOCKS.
• TEST ADAPTERS: FACILITATE EASY TESTING AND MAINTENANCE.
• MARKING TAGS: STANDARD MARKING TAGS ARE AVAILABLE FOR CLEAR IDENTIFICATION.
-ORDERING INFORMATION
• S2C 2.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 2719300000 AND 2719400000 RESPECTIVELY.
• S3C 2.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 2703700000 AND 2703800000 RESPECTIVELY.
B) PUSH IN – A SERIES
OVERVIEW
THE A-SERIES TERMINAL BLOCKS FEATURE ADVANCED PUSH IN TECHNOLOGY, DESIGNED FOR FAST AND SECURE ELECTRICAL CONNECTIONS. THESE BLOCKS ARE PARTICULARLY SUITABLE FOR APPLICATIONS REQUIRING ROBUST AND RELIABLE CONNECTIONS IN COMPACT SPACES.
-PRODUCT VARIANTS
• A2C 1.5: OPTIMIZED FOR 1.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN DARK BEIGE AND BLUE COLORS.
• A3C 1.5: ALSO SUITED FOR 1.5 MM² CONDUCTORS, PROVIDING ADDITIONAL FEATURES AND AVAILABLE IN DARK BEIGE.
-TECHNICAL DATA
• WIDTH/HEIGHT/DEPTH: 3.5/35.5/33.5 MM
• MAX. CURRENT/MAX. CONDUCTOR CROSS-SECTION: 17.5 A / 1.5 MM²
• MAX. CLAMPING RANGE: 0.14-1.5 MM²
• RATED VOLTAGE: UP TO 800 V
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
-ACCESSORIES
• PLUG-IN CROSS CONNECTION: AVAILABLE IN 2-POLE AND 10-POLE VARIANTS FOR EFFICIENT CONNECTIVITY.
• END PLATES AND BRACKETS: ENSURE SECURE MOUNTING AND PROTECTION OF TERMINAL BLOCKS.
• TEST ADAPTERS: FACILITATE EASY TESTING AND MAINTENANCE.
MARKING TAGS: STANDARD MARKING TAGS ARE AVAILABLE FOR CLEAR IDENTIFICATION.
-ORDERING INFORMATION
• A2C 1.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 1922000000 AND 1922200000 RESPECTIVELY.
• A3C 1.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 1922300000 AND 1922700000 RESPECTIVELY.
OVERVIEW
THE W-SERIES TERMINAL BLOCKS UTILIZE SCREW CONNECTION WITH CLAMPING YOKE TECHNOLOGY, OFFERING A RELIABLE AND EFFICIENT SOLUTION FOR ELECTRICAL CONNECTIONS. THESE TERMINAL BLOCKS ARE DESIGNED FOR SECURE WIRING, SUITABLE FOR A RANGE OF INDUSTRIAL APPLICATIONS.
-PRODUCT VARIANTS
• WDU 1.5/R 3.5: SUITABLE FOR 1.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN DARK BEIGE AND BLUE COLORS.
• AKZ 1.5: DESIGNED FOR 1.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN BEIGE.
-TECHNICAL DATA
• WDU 1.5/R 3.5
• WIDTH/HEIGHT/DEPTH: 3.5/24/24 MMMAX. CURRENT/
• MAX. CONDUCTOR CROSS-SECTION: 17.5 A / 1.5 MM²
• MAX. CLAMPING RANGE: 0.14-1.5 MM²
• RATED VOLTAGE: 500 V (IEC), 300 V (UL)
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
• AKZ 1.5
-WIDTH/HEIGHT/DEPTH: 5.1/24/24 MM
• MAX. CURRENT/MAX. CONDUCTOR CROSS-SECTION: 24 A / 1.5 MM²
• MAX. CLAMPING RANGE: 0.2-2.5 MM²
• RATED VOLTAGE: 630 V (IEC), 300 V (UL)
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
-ACCESSORIES
• END PLATE/PARTITION PLATE:
• WDU 1.5/R 3.5: WAP WDU 1.5/R, ORDER NO. 1791590000
• AKZ 1.5: AP AKZ 1.5, ORDER NO. 1726600000
• END BRACKET: EW 15, ORDER NO. 9540000000
• TEST PLUG/SOCKETS: PS 2.3 FOR AKZ 1.5, ORDER NO. 1791320000
PRODUCT MODEL: SNAP IN – S SERIES, PUSH IN – A SERIES, SCREW- W SERIES
A) SNAP IN – S SERIES
OVERVIEW
THE S-SERIES TERMINAL BLOCKS FEATURE INNOVATIVE SNAP IN TECHNOLOGY, OFFERING A RELIABLE AND EFFICIENT SOLUTION FOR ELECTRICAL CONNECTIONS. THESE TERMINAL BLOCKS ARE DESIGNED FOR QUICK AND SECURE WIRING, MAKING THEM IDEAL FOR VARIOUS INDUSTRIAL APPLICATIONS.
-PRODUCT VARIANTS
• S2C 2.5: SUITABLE FOR 2.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN DARK BEIGE AND ORANGE COLORS.
• S3C 2.5: ALSO DESIGNED FOR 2.5 MM² CONDUCTORS, THIS VARIANT PROVIDES ENHANCED FEATURES AND IS AVAILABLE IN DARK BEIGE.
-TECHNICAL DATA
• WIDTH/HEIGHT/DEPTH: 5.1/35.9/38 MM
• MAX. CURRENT/MAX. CONDUCTOR CROSS-SECTION: 24 A / 2.5 MM²
• MAX. CLAMPING RANGE: 0.5-2.5 MM²
• RATED VOLTAGE: UP TO 800 V
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
-ACCESSORIES
• CROSS CONNECTION PLUGGABLE: AVAILABLE IN 2-POLE AND 10-POLE VARIANTS FOR EFFICIENT CONNECTIVITY.
• END PLATES AND BRACKETS: ENSURE SECURE MOUNTING AND PROTECTION OF TERMINAL BLOCKS.
• TEST ADAPTERS: FACILITATE EASY TESTING AND MAINTENANCE.
• MARKING TAGS: STANDARD MARKING TAGS ARE AVAILABLE FOR CLEAR IDENTIFICATION.
-ORDERING INFORMATION
• S2C 2.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 2719300000 AND 2719400000 RESPECTIVELY.
• S3C 2.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 2703700000 AND 2703800000 RESPECTIVELY.
B) PUSH IN – A SERIES
OVERVIEW
THE A-SERIES TERMINAL BLOCKS FEATURE ADVANCED PUSH IN TECHNOLOGY, DESIGNED FOR FAST AND SECURE ELECTRICAL CONNECTIONS. THESE BLOCKS ARE PARTICULARLY SUITABLE FOR APPLICATIONS REQUIRING ROBUST AND RELIABLE CONNECTIONS IN COMPACT SPACES.
-PRODUCT VARIANTS
• A2C 1.5: OPTIMIZED FOR 1.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN DARK BEIGE AND BLUE COLORS.
• A3C 1.5: ALSO SUITED FOR 1.5 MM² CONDUCTORS, PROVIDING ADDITIONAL FEATURES AND AVAILABLE IN DARK BEIGE.
-TECHNICAL DATA
• WIDTH/HEIGHT/DEPTH: 3.5/35.5/33.5 MM
• MAX. CURRENT/MAX. CONDUCTOR CROSS-SECTION: 17.5 A / 1.5 MM²
• MAX. CLAMPING RANGE: 0.14-1.5 MM²
• RATED VOLTAGE: UP TO 800 V
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
-ACCESSORIES
• PLUG-IN CROSS CONNECTION: AVAILABLE IN 2-POLE AND 10-POLE VARIANTS FOR EFFICIENT CONNECTIVITY.
• END PLATES AND BRACKETS: ENSURE SECURE MOUNTING AND PROTECTION OF TERMINAL BLOCKS.
• TEST ADAPTERS: FACILITATE EASY TESTING AND MAINTENANCE.
MARKING TAGS: STANDARD MARKING TAGS ARE AVAILABLE FOR CLEAR IDENTIFICATION.
-ORDERING INFORMATION
• A2C 1.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 1922000000 AND 1922200000 RESPECTIVELY.
• A3C 1.5: AVAILABLE IN PACKS OF 50 AND 100 WITH ORDER NUMBERS 1922300000 AND 1922700000 RESPECTIVELY.
OVERVIEW
THE W-SERIES TERMINAL BLOCKS UTILIZE SCREW CONNECTION WITH CLAMPING YOKE TECHNOLOGY, OFFERING A RELIABLE AND EFFICIENT SOLUTION FOR ELECTRICAL CONNECTIONS. THESE TERMINAL BLOCKS ARE DESIGNED FOR SECURE WIRING, SUITABLE FOR A RANGE OF INDUSTRIAL APPLICATIONS.
-PRODUCT VARIANTS
• WDU 1.5/R 3.5: SUITABLE FOR 1.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN DARK BEIGE AND BLUE COLORS.
• AKZ 1.5: DESIGNED FOR 1.5 MM² CONDUCTORS, THIS VARIANT IS AVAILABLE IN BEIGE.
-TECHNICAL DATA
• WDU 1.5/R 3.5
• WIDTH/HEIGHT/DEPTH: 3.5/24/24 MMMAX. CURRENT/
• MAX. CONDUCTOR CROSS-SECTION: 17.5 A / 1.5 MM²
• MAX. CLAMPING RANGE: 0.14-1.5 MM²
• RATED VOLTAGE: 500 V (IEC), 300 V (UL)
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
• AKZ 1.5
-WIDTH/HEIGHT/DEPTH: 5.1/24/24 MM
• MAX. CURRENT/MAX. CONDUCTOR CROSS-SECTION: 24 A / 1.5 MM²
• MAX. CLAMPING RANGE: 0.2-2.5 MM²
• RATED VOLTAGE: 630 V (IEC), 300 V (UL)
• STANDARDS: COMPLIES WITH IEC 60947-7-1, UL, CSA, AND EN 60947-7 STANDARDS.
-ACCESSORIES
• END PLATE/PARTITION PLATE:
• WDU 1.5/R 3.5: WAP WDU 1.5/R, ORDER NO. 1791590000
• AKZ 1.5: AP AKZ 1.5, ORDER NO. 1726600000
• END BRACKET: EW 15, ORDER NO. 9540000000
• TEST PLUG/SOCKETS: PS 2.3 FOR AKZ 1.5, ORDER NO. 1791320000
